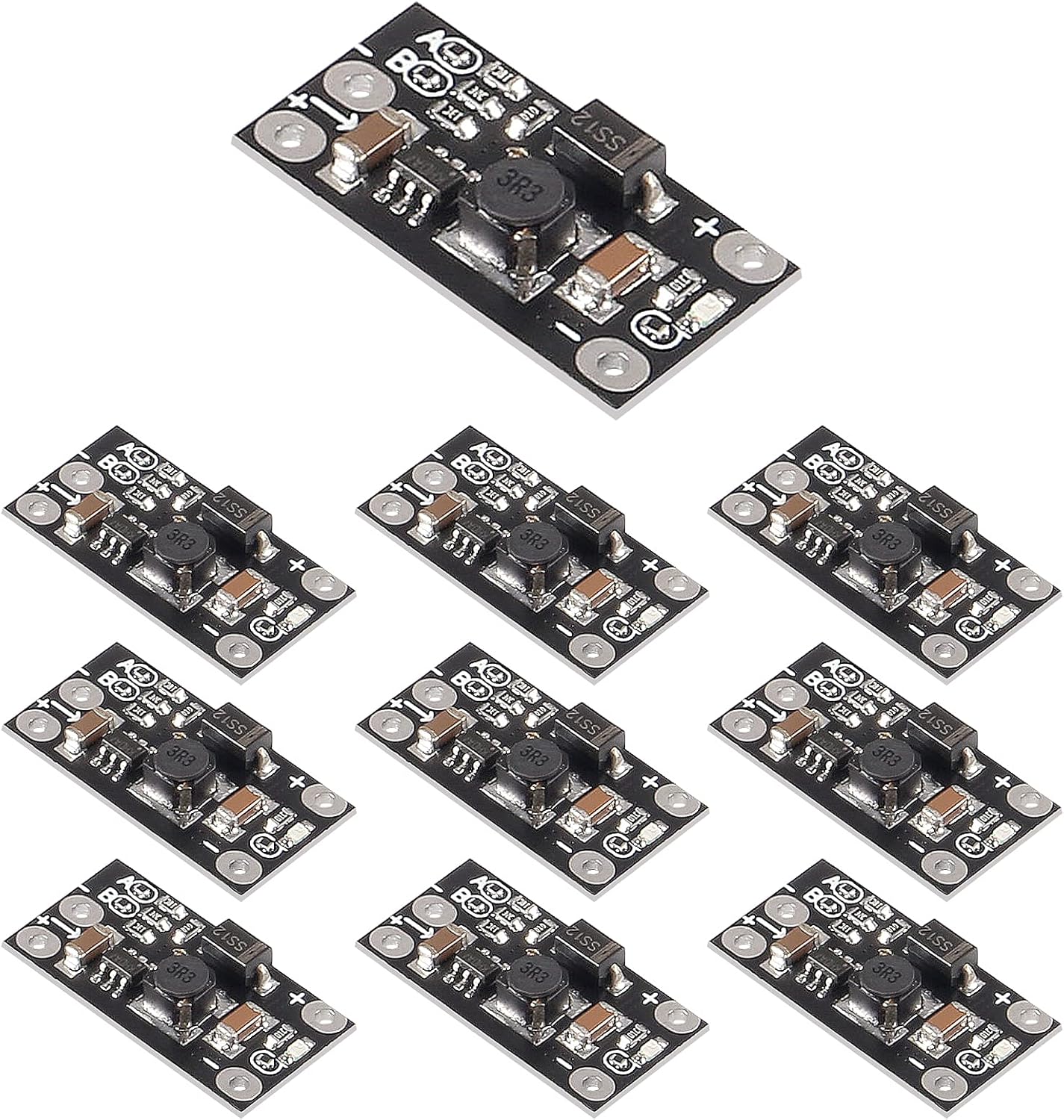

AITRIP 10PCS 1.5A Multi-Function Mini Boost Module Review: A Comprehensive Analysis
In the realm of DIY electronics and voltage modification, the AITRIP 10PCS 1.5A Multi-Function Mini Boost Module has emerged as a versatile and efficient solution. This compact step-up board is designed to convert input voltages from 2.5V to a desired output voltage of 5V, 8V, 9V, or 12V, making it an ideal component for a wide range of applications. In this review, we will delve into the specifications, features, and functionality of this mini boost module, exploring its capabilities and potential uses.
Specifications and Features
The AITRIP 10PCS 1.5A Multi-Function Mini Boost Module boasts an impressive set of specifications, including:
- Output Voltage: Adjustable to 5V, 8V, 9V, or 12V, with a default setting of 12V
- Input Voltage: Accepts a range of 2.5V to VOUT-0.5V
- Output Performance: Capable of delivering 5V at 1A, 8V at 0.7A, 9V at 0.6A, and 12V at 0.5A when using a 3.7V lithium battery as the input source
- LED Indicator: Consumes approximately 6mA when the default 12V output is selected, and less than 1mA when the indicator is turned off
- Product Size: Measuring 22 × 11 × 3.6mm, making it an extremely compact and space-efficient solution
Adjusting the Output Voltage
One of the standout features of the AITRIP 10PCS 1.5A Multi-Function Mini Boost Module is its adjustable output voltage. By using a soldering iron to modify the pad connections on the PCB, users can easily switch between the four available output voltages. The configuration table provided in the product documentation clearly outlines the required connections:
| A | B | VOUT |
|---|---|---|
| 0 | 0 | 5V |
| 0 | 1 | 8V |
| 1 | 0 | 9V |
| 1 | 1 | 12V |
This level of flexibility makes the module an attractive option for a variety of projects, from DIY electronics to professional applications.
Package and Contents
The AITRIP 10PCS 1.5A Multi-Function Mini Boost Module is sold in packs of 10, providing an excellent value for those requiring multiple units. Each package includes:
- 10 x Mini Boost Module 3.7V Lithium Battery to 5V 8V 9V 12V Step Up Board
Key Benefits and Applications
The AITRIP 10PCS 1.5A Multi-Function Mini Boost Module offers several key benefits, including:
- Compact size: The module’s tiny footprint makes it perfect for space-constrained projects and applications.
- Adjustable output voltage: The ability to switch between four different output voltages provides unparalleled flexibility and versatility.
- High output current: The module’s maximum output current of 1A ensures that it can handle a wide range of applications, from small electronics to more demanding projects.
- Low input voltage: The module’s ability to accept input voltages as low as 2.5V makes it an excellent choice for single-cell lithium battery applications.
Some potential applications for the AITRIP 10PCS 1.5A Multi-Function Mini Boost Module include:
- DIY electronics projects
- Voltage modification and regulation
- Single-cell lithium battery applications
- Portable electronics and devices
- IoT and robotics projects
Conclusion
In conclusion, the AITRIP 10PCS 1.5A Multi-Function Mini Boost Module is a highly versatile and efficient solution for a wide range of applications. Its adjustable output voltage, compact size, and high output current make it an excellent choice for DIY electronics, voltage modification, and single-cell lithium battery applications. With its low input voltage and flexible configuration options, this module is sure to find a place in the toolbox of any electronics enthusiast or professional. Whether you’re working on a small project or a large-scale application, the AITRIP 10PCS 1.5A Multi-Function Mini Boost Module is definitely worth considering.
