A Comprehensive Review of the NOYITO 50V 4700uF 6A Rectifier Filter Power Board
In the realm of electronics, having a reliable and efficient power supply is crucial for the optimal performance of devices. The NOYITO 50V 4700uF 6A Rectifier Filter Power Board is designed to meet this need, providing a single supply rectifier AC to DC power module that can be used in a variety of applications, including power amplifiers, rectifiers, and other equipment. This article delves into the details of this product, exploring its specifications, features, and potential uses.
Introduction to the NOYITO Rectifier Filter Power Board

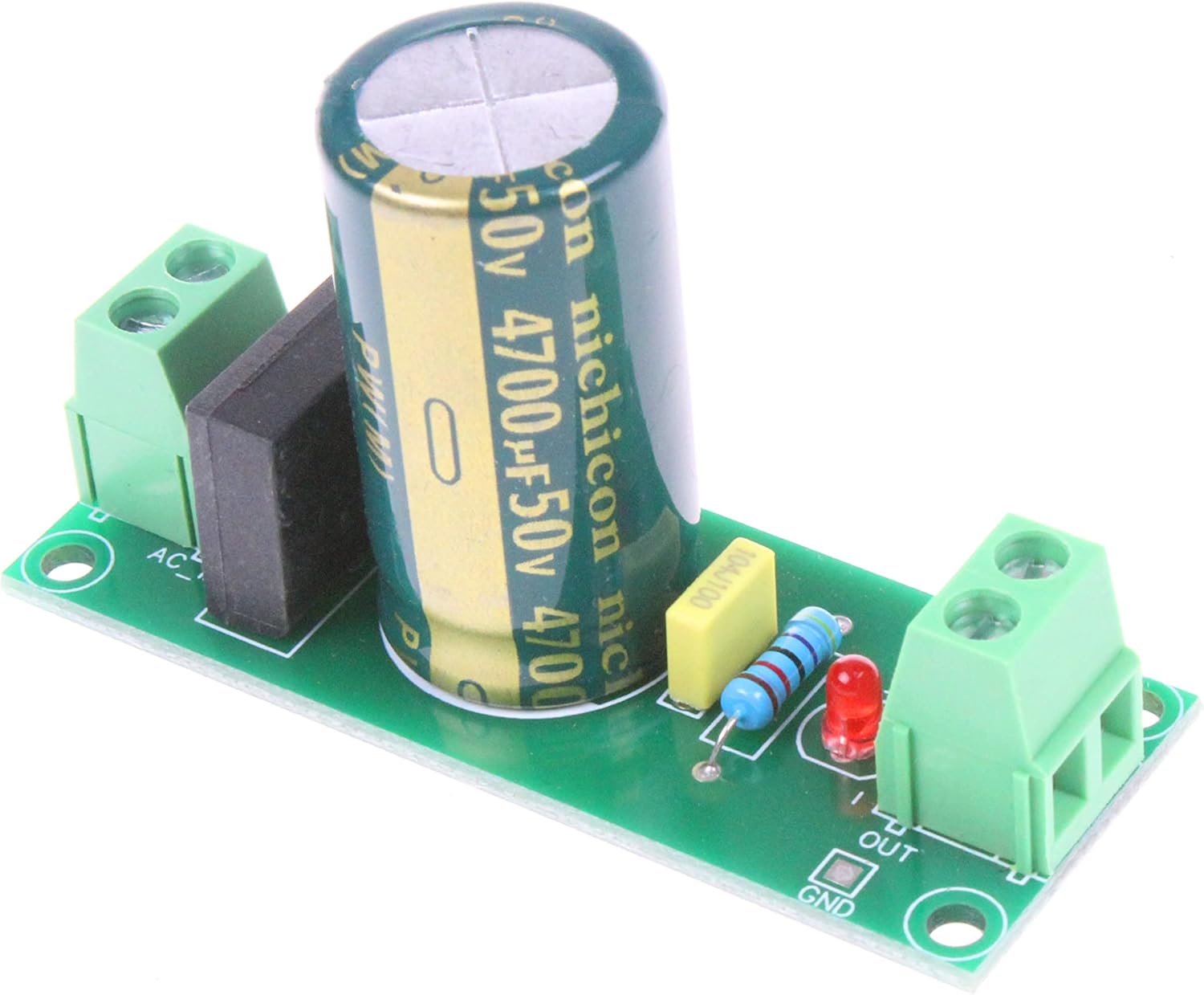

The NOYITO 50V 4700uF 6A Rectifier Filter Power Board is a compact, versatile power module that converts AC voltage to DC voltage, making it an essential component in many electronic circuits. With its green PCB and compact dimensions of 63.4×24.1×37.3mm (LWH), this module is not only functional but also space-efficient, allowing it to be easily integrated into a wide range of projects and devices.
Key Specifications and Features
One of the standout features of the NOYITO Rectifier Filter Power Board is its input voltage range of AC 0-35V, which can be rectified to produce a DC output voltage of 0-50V. This flexibility in voltage handling makes the module highly adaptable to different applications. The working current is specified at 6A Max, indicating that the module is capable of handling substantial current demands without compromising on performance.
The rectifier bridge specification is KBL608, a component known for its reliability and efficiency in converting AC to DC. Complementing this is the 4700uF/50V capacitor, which plays a critical role in filtering the output to ensure a smooth and stable DC supply. The capacitor’s diameter of 18mm and capacity of 4700uF at 50V underscore its ability to handle significant voltage and current requirements.
Design and Construction
The module’s design reflects a focus on both functionality and durability. Weighing in at 26 grams, the NOYITO Rectifier Filter Power Board is lightweight, yet its construction appears robust enough to withstand normal operating conditions. The green color of the PCB is not just aesthetically pleasing but also provides a clear visual indication of the module’s components and pathways, which can be beneficial during troubleshooting or customization.
The compact size of the module, coupled with its relatively low weight, makes it an attractive option for projects where space is at a premium. This could include everything from DIY electronics projects to professional applications in fields such as audio equipment, medical devices, and industrial control systems.
Potential Applications
Given its specifications, the NOYITO 50V 4700uF 6A Rectifier Filter Power Board is suited to a variety of applications that require a stable DC power supply. Power amplifiers, for instance, can benefit greatly from the module’s ability to provide a smooth and consistent power output, which is crucial for maintaining the quality of the amplified signal.
Beyond power amplifiers, the module can be used in the construction of rectifiers and other power supply units, serving as a foundational component in the design of custom power solutions. Its applicability extends to any device or system that requires the conversion of AC to DC power, making it a versatile tool for both hobbyists and professional engineers.
Technical Considerations
When integrating the NOYITO Rectifier Filter Power Board into a project, it’s essential to consider the technical aspects of its operation. The input voltage range and maximum working current are critical parameters that must be respected to ensure the longevity and efficiency of the module. Overvoltage or excessive current can lead to damage or reduced performance, highlighting the need for careful planning and design in the context of the overall system.
Additionally, the choice of the KBL608 rectifier bridge and the 4700uF/50V capacitor reflects a balance between economy and performance. These components are selected for their ability to provide reliable service under the specified conditions, though users may wish to consider upgrading or modifying these components based on specific application requirements.
Conclusion
The NOYITO 50V 4700uF 6A Rectifier Filter Power Board represents a valuable addition to the toolkit of anyone involved in electronics, whether professionally or as a hobby. Its compact design, flexible voltage handling, and robust construction make it an attractive option for a wide range of applications. By understanding the module’s specifications, features, and potential uses, users can harness its capabilities to create efficient, reliable, and high-performance power supply solutions.
As electronic devices continue to evolve and become more sophisticated, the demand for compact, efficient, and adaptable power supply modules like the NOYITO Rectifier Filter Power Board is likely to grow. This module’s ability to convert AC to DC power smoothly and efficiently, combined with its durability and versatility, positions it as a key component in the design and development of future electronic systems.
In summary, the NOYITO 50V 4700uF 6A Rectifier Filter Power Board is a highly capable and versatile power module that can meet the needs of a diverse range of applications, from power amplifiers and rectifiers to custom electronic projects. Its specifications, design, and construction make it a valuable resource for anyone requiring a reliable and efficient AC to DC power conversion solution.
